SEAVAX  - LOW COST COMPUTER NAVIGATION

SeaVax model computer navigation systems based on arduino and raspberry pi boards and peripherals









OCEAN ENTERPRISE 1 - FEASIBILITY STUDY



The Ocean Enterprise MK1, is a 1:20 scale fully functional model of a proposed autonomous, solar powered (small) ship that is designed to vacuum up plastic from the sea.



This concept relies on off the shelf components that can easily be adapted to form a comprehensive system, to include navigation and fleet control. Navigation systems based on Arduino and Raspberry Pi micro computers already exist and for the most part the code is open source.









NAVIGATION, COMMAND & CONTROL - On-board directional control and navigation is provided by two Arduino microcontrollers and a GPS receiver - one Arduino to navigate like an Autopilot, and one to communicate via an Iridium transceiver. Telemetry data is to be sent back to the team using the Iridium satellite constellation and provided live as a visual display on the World Wide Web. Telemetry information can be relayed via Iridium 9612 every hour. For this study there is no need for encryption or security check logins. This is a good start for fleet management, where during operations each vessel would also be in communication with others in the same ocean to ensure an unbroken chain. The Scout Transatlantic used a similar system to good effect, until their steering gear broke - obviously, without security features. To make this system fully functional for navigating the SeaVax, we'd need to use a Raspberry + Arduino setup. Both the Raspberry and Arduino computers are versatile enough to run other onboard control functions and cheap enough that we can build in several layers of redundancy.





AUTOMATION - Arduino is an open-source electronics prototyping platform based on flexible, easy-to-use hardware and software. Arduino can sense the environment by receiving input from a variety of sensors and can affect its surroundings by controlling lights, motors, and other actuators. Arduino projects can be stand-alone or they can communicate with software running on a computer (e.g. Flash, Processing, MaxMSP).



Raspberry PI micro computer board



ARDUPILOT DRONE SOFT / HARDWARE - ArduPilot is an open source UAV platform created by the DIY Drones community. It is based on the Arduino open-source electronics prototyping platform. The first Ardupilot version was based on thermopile which relies on determining a hypothetical horizon by measuring the difference of temperature between the sky and the ground. With the participation of Jordi Muñoz, the system was improved to replace thermopile by IMU (Inertial measurement unit) using a combination of accelerometers and gyroscopes (and also optional magnetometers). This gave the IMU the advantage of being independent from climatic conditions. We don't need these functions on our SeaVax robots, but it is interesting how electronic solutions develop.







FULL AUTONOMY - 3D Robotics have developed the APM Universal Autopilot to provide fully autonomous control to a multitude of vehicles. The APM is a full UAV (Unmanned Autonomous Vehicle) autopilot, supporting piloted and unpiloted operation of vehicles, including hundreds of GPS waypoints, camera control and auto launch and docking. For the full size SeaVax vessels we will need more elaborate controls, but this is an excellent and workable solution for a small scale testbed.





Other micro computer systems that may also be suitable for such controls are the: Beagleboard, Mbed, Picaxe and Raspbery pi. It won't be long before such systems are integrated, much like the Tom Tom revolutionized travel planning, and available off the shelf. Presently, military and research institutions play their cards close to their chest, in an effort to retain a monopoly on technology like this that should be readily available for the advancement of mankind.





BACKUP



For our limited trials we do not need to trouble ourselves with layers of redundancy. In these exercises - a simple re-boot will do should the system hang or crash. On the full size robot ship, built in fail safes are crucial to maintain reliable operation and recovery if all else fails. A backup system or vital parts of systems will form part of the operating systems on the prototype.





Prvate lake for testing the SeaVax Enterprise in private



NAVIGATION TRIALS - We use two secure (controlled) locations to test our vessels in Sussex, in private. The picture directly above looks for all the world like Lake Dumbleyung in Australia in this light. Lake Dumbleyung is where Donald Campbell set the first of his unbeatable double achievement (land and water world speed records in the same year). The SeaVax test model will carry the blue bird legend as seen on our official merchandise.





SEAVAX NAVIGATION - FULL SIZE



Readers will not be surprised to learn that navigation instruments and equipment have advanced so far that the full size robot ship can use off the shelf autopilots and other navigation equipment to control the fleet, leaving automation of the cleaning functions as the main obstacle to conquer. We know a programmer who used an Amiga to control a whole bottling plant. The newer Raspberry and Arduino boards have buckets more computing power.

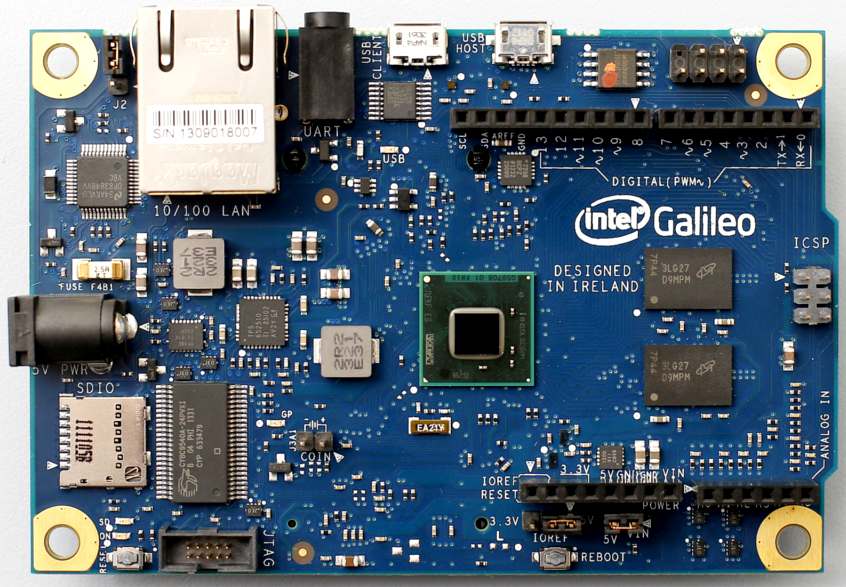

Galileo is a microcontroller board based on the Intel® Quark SoC X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip. It’s the first board based on Intel® architecture designed to be hardware and software pin-compatible with Arduino shields designed for the Uno R3. Digital pins 0 to 13 (and the adjacent AREF and GND pins), Analog inputs 0 to 5, the power header, ICSP header, and the UART port pins (0 and 1), are all in the same locations as on the Arduino Uno R3. This is also known as the Arduino 1.0 pinout.

Galileo is designed to support shields that operate at either 3.3V or 5V. The core operating voltage of Galileo is 3.3V. However, a jumper on the board enables voltage translation to 5V at the I/O pins. This provides support for 5V Uno shields and is the default behavior. By switching the jumper position, the voltage translation can be disabled to provide 3.3V operation at the I/O pins.

The Galileo board is also software compatible with the Arduino Software Development Environment (IDE), which makes usability and introduction a snap. In addition to Arduino hardware and software compatibility, the Galileo board has several PC industry standard I/O ports and features to expand native usage and capabilities beyond the Arduino shield ecosystem. A full sized mini-PCI Express slot, 100Mb Ethernet port, Micro-SD slot, RS-232 serial port, USB Host port, USB Client port, and 8MByte NOR flash come standard on the board.

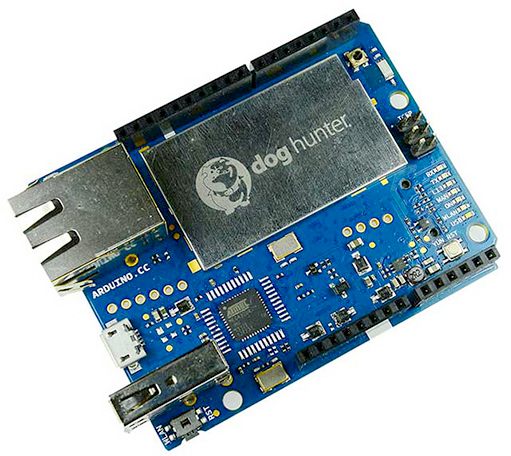

ARDUINO YUN COMPUTER LINUX COMBO - Designed in collaboration with Dog Hunter, a company with extensive experience with Linux, the board adopts the Linino distribution which provides signed packages to ensure the authenticity of the software installed on the device.

Historically, interfacing Arduino with complex web services has been quite a challenge due to the limited memory available and they tend to use verbose text based formats like XML that require quite a lot or ram to parse. On the Arduino Yún we have created the Bridge library which delegates all network connections and processing of HTTP transactions to the Linux machine.

Arduino Yún is the combination of a classic Arduino Leonardo (based on the Atmega32U4 processor) with a Wifi system-on-a-chip running Linino (a MIPS GNU/Linux based on OpenWRT). It’s based on the ATMega32u4 microcontroller and on the Atheros AR9331, a system on a chip running Linino, a customized version of OpenWRT, the most used Linux distribution for embedded devices.

Like a Leonardo, it has 14 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator and a micro USB connector.

Like any modern computer, it’s Wi-Fi enabled, it has a Standard-A type USB connector to which you can connect your USB devices and it has a micro-SD card plug, for additional storage.

The Yún ATMega32u4 can be programmed as a standard Arduino board by plugging it to your computer with the micro USB connector. And you can also program it via Wi-Fi.

When the Yún is turned on for the first time, it becomes an Access Point, creating a Wi-Fi network named “Arduino”. Open your browser and go to the webpanel: configure the board by entering your Wi-Fi network name, type and password. Click the “Configure” button to restart the board and have it join your home network. Opening the IDE, you’ll see it listed in the “Port” sub menu with its IP address instead of the serial port name.

Using the Bridge library in your sketches, you can link the 32u4 to Linux, launching programs and scripts, passing them parameters (sensor readings for example) and reading their output, thus creating a strong integration between the creativity of your sketch and the power of Linux. The Yún supports Shell and Python scripts out-of-the-box but you can install a wide range of open source software and tools.

For the Linux geek in you, Yún can be reached with SSH: that means you’ll be able to customize it in whatever way. And you’ll always be able to reset it to its factory settings.

On top of that to make it even simpler to create complex applications we’ve partnered with the innovative startup Temboo which provides normalized access to 100+ APIs from a single point of contact allowing developers to mix and match data coming from multiple platforms (for example Twitter, Facebook, Foursquare but even FedEx or PayPal).





SeaVax ocean cleanup project business cards
